Quantum Dimplex Night Storage Heater Won't Charge at Max Rate

Hey ​@martinwinlow,

I’m going to bring in ​@Firedog, who really knows their stuff when it comes to storage heaters. I wanted to ask, when you mention that your tariff only allows for 6 hours of charging each day, do the storage heaters recognize this and charge for the full 6 hours, or could you be missing out on some time? Is there a chance that there’s a setting that’s preventing the storage heaters from taking a full charge?

I took a look at the manual to see if I could find any other helpful tips about the charging limits. I’ve linked it below in case you or anyone else wants to check it out. It sounds like your storage heaters might not be set up quite right with your tariff. Usually, storage heaters work best with an economy tariff that gives you specific hours for off-peak charging. As far as I know, the Octopus Intelligent Go tariff is mainly aimed at EV charging, which might be causing the issues you’re seeing.

Dimplex mentions that the QM050RF can charge in about 5 to 6 hours, but it's really designed for at least a 7-hour window to ensure it charges fully, especially in colder weather when it needs to store more heat.

Firedog, what do you think about all this? Looking forward to your thoughts.

Dimplex QM050RF manual

• Chris_OVO:

• This is a screen shot from the Emporia Vue monitoring my Kitchen NSH (night storage heater - which is the Quantum in question)...



  I have a programmable ‘circuit breaker’ supplying this circuit (there is still the separate 24hr supply wired from a different consumer unit (CU) and thus supply).  This is set to turn on the NSH ‘charging’ circuit from 2330 - 0530 aligning electricity consumption with Intelligent Octopus Go (IOG) nighttime tariff. This is the only cheap period that is set in stone. As you say IOG has extra periods of low cost (7p/kWh) during the day but they vary according to the cost of electricity on the open market and thus these periods are out of scope for the purposes of programming my circuit breaker.

Hi ​@martinwinlow

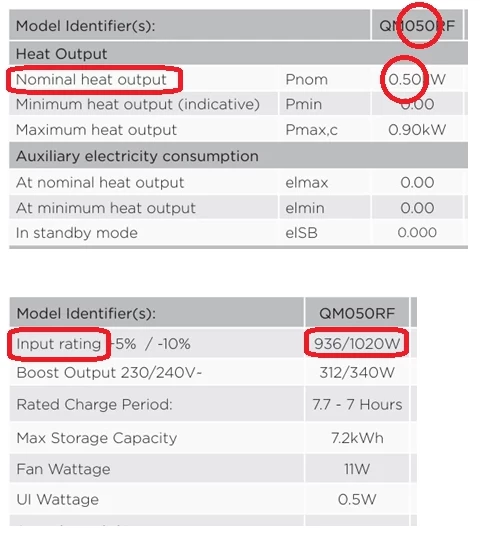

Trying not to tread on ​@Firedog’s toes the spec sheet is a tad confusing. It is basically a 500W storage heater with a 340W boost mode. I think the 1050W rating is the absolute power it could ever possibly take (with fans?) and maybe the rating you need to calculate the safe load for the circuit not the actual load.

Given your heating needs I think you need the higher energy storage units like the QM100RF. Perhaps Noel will have another take on that.

By the way, well done on getting the units right for power (kW) and energy (kWh) which confuses a lot of people. Exceptional!

Peter

(“By the way, well done on getting the units right...”  I knew that 1980’s MSc in engineering would come in useful one day...)

Let’s see what Firedog has to say but this model Quantum with it’s 7.2kWh storage capacity, it makes sense that it would be designed with a 1kW heating element if it is intended to go from empty to full in one 7 hour (eco&7/off-peak) charging period…  So again, why am I only measuring 700W input, max?

​@martinwinlow , can I ask if you use any of the adaptive functions at all? Also what base voltage do you record on that circuit over a typical cycle?

adaptive functions:  Not that I’m aware of tho it is possible I set something up when I first installed it (other than basic on and off times).  Is there an easy way to find out - I’d rather not have to factory reset it as the timings are mildly complex and it isn’t the easiest thing to re-program…


Voltage here is generally relatively high - usually around 245VAC due (I quess) to the fact that we are right on the end of a very tortuous mains connection (via 2 under-sea linked islands before it gets to this one) and there is a 100kW wind turbine just up the hill from me…  Usually going like the clappers up here!

There are several notes in the manual (linked earlier by Chris), some of which look at the menu functions and what is called a ‘set up wizard’. I guess you should be able to see set functions via the menu system.

I had originally assumed that the adaptive functions might modify power drawn but I’m now not sure that is the case.

Actually I’ve just learned that the Quantum range uses “dynamic intelligent charge calculation” and will deliberately reduce overnight charging if it thinks less stored heat is needed - not sure how it calculates that.

Another possibility is a failed element perhaps

Oh dear, I’m afraid I can’t match up to the hype in this case. My experience is with the more basic types of NSH, and in particular how they interact with smart meter ALCS control. One look at the schematic wiring diagram was enough to persuade me to bow out gracefully.

We know that ‘insufficient charge’ can with older NSHs indicate that a thermostat or one or more of the heating elements have failed; there should be on-board diagnostics to reveal that sort of fault. BP has mentioned ‘adaptive’ functions; I’ve noticed elsewhere that it can take several charge/release cycles (i.e. several days) for an intelligent control system to match input to desired output. It can be very tedious making a change - like desired temperature - and then having to wait days for the heater to work out how to deliver it.

I’m told that Dimplex tech support is really helpful, so that may be a good source of advice. Better than me, at any rate ...

OK - thanks for your thoughts.  I’ll take it up with Dimplex.  I did try that route initially but got diverted down some annoying ‘pay-for’ rabbit hole which I found rather irritating and very disappointing… but I’ll try calling instead.
